Apologies for the gap — this is the first Saw post since Saw #9 in early May. Summer vacation, refactoring this blog, and more projects than there was time for took the months in between.

Most of that project time went to sw-MLPL and the repositories around it: 2,720 commits since 1 June across fifteen repositories, 1,508 of them in the language itself.

TL;DR

Area What landed
General-purpose language Strings, records, sandboxed byte and filesystem I/O, JSON/TOML decode with limits, first-class function references, call, partial application, bracket teardown, structural equality, reflection, APL2 introspection
Compile to Rust Control flow, user functions, records, Results, strings, bit-ops, file I/O and the string family all lower to the compiled path; coverage gate added
Libraries demo-mlpl-libraries proves reusable MLPL modules; today’s mechanism is static source composition via sandboxed include
Demos Thirteen companion repos across mathematics, general programming, and ML tooling
Graphics native3d — wgpu line and point scenes, retained across every interactive demo, driven from MLPL
Networking Bounded HTTP client, callback-free HTTP server, confined SQLite, and a persistent TodoMVC served from MLPL
Extension boundary Versioned C ABI, panic containment, arrays/handles/records across the boundary. use <package>, dynamic loading, and compiled-provider startup remain open contracts
Resource Link
sw-MLPL sw-ml-study/sw-mlpl
Playground (stable) mlpl.softwarewrighter.com
Playground (latest) sw-ml-study.github.io/sw-mlpl
Extensions demo-extensions
Libraries demo-mlpl-libraries · mlplunit
Abstract algebra site sw-ml-study.github.io/demo-abstract-algebra
Comments Discord

The general-purpose surface

sw-MLPL began as an array and tensor language for machine learning. Most of the language work since June has been the general-purpose programming surface that an ML-first array language does not start with, grouped roughly as it landed:

Group Builtins and features
Strings and records str_len / str_slice / str_find / str_split, record literals and field access, has_field / record_get / record_keys
Functions as values first-class references generalized from :u:name to :namespace:name, call(f, args...), Partial as a runtime value, each / table, atop / over composition, higher-order reduce(:op, x)
Errors and control bracket(setup, use, teardown) with a full error plane, Result combinators, ? composition, global_set
Bytes and files sandboxed read_bytes / write_bytes / append_bytes, bounded range reads with file_size, fs_walk / read_text / write_text / remove_path, file_metadata, scan_length_prefixed, reinterpret, a little-endian typed reader family
Decoding parse_json and parse_toml with max_depth / max_bytes / max_elements caps, duplicate-key rejection, opt-in Result reconstruction, parse_native
Testing and reflection structural equal / repr, @test registration, tests() / test_info() / annotations()
APL2 lineage depth / disp / size / tally, transpose_axes, at, expunge, blocked box display for rank-3 and rank-4 arrays

A second track compiles MLPL to Rust. Since June the compiled path gained if/else and real returns, while loops and mutable variables, user functions, record literals and field access, ok/err Results, strings, comparisons, the bit-op family, the str_* family, read_bytes and file_size, write_bytes and append_bytes, read_stdin, print/eprint, exit, and include resolution in mlpl-build — plus a coverage gate to keep the two paths honest about their differences.

The pattern behind most of these is documented in the project’s own companion-repository notes: a downstream repository states an executable need, and the core grows the smallest surface that satisfies it. mlplunit, the xUnit-style test framework, drove structural equality, include, callables, test metadata and reflection, bracket, typed events, the filesystem API, run_script, and parse_json.

Libraries

demo-mlpl-libraries is the proving ground for reusable modules written in MLPL and consumed by MLPL applications in other repositories. Its first integration target is demo-extensions, whose camera, geometry, and application helpers were being copied between demos rather than shared.

The supported mechanism today is static source composition:

include "vendor/swml/result.mlpl"

include is sandboxed beneath the application’s --source-dir, expands in source order, ignores duplicate loads, and rejects cycles. Package-style distribution is not built; the repository is explicit that this is the current mechanism rather than the final one.

Using it: mathematics, general programming, ML

Thirteen companion repositories exercise the language on real material. Each states an ownership boundary — what MLPL does, and where a native tool or external oracle takes over — and records what it cannot yet express as an upstream request rather than working around it.

Mathematics. demo-linear-algebra runs from feature vectors and dot products through least squares, PCA, LoRA, and attention; its foundation, matrix, systems/rank/conditioning, and factorization units are each accepted with their own reports. demo-abstract-algebra builds on one observation — a finite binary operation on n elements is an n × n array — and ships a browser Cayley table explorer plus a spike running the interpreter on the page; its guided course is planned, not built. demo-category-theory has thirty-two lessons implemented and checked, where both sides of a law run over the same finite inputs and a failed law shows a concrete counterexample.

General programming. demo-algorithms (267 commits) covers searching, sorting, graphs, numerics, dynamic programming, serialization, and matrices, favouring whole-array operations with explicit loops as a last resort. demo-data-structures separates reusable implementations, worked examples, and conformance tests. demo-design-patterns implements all twenty-three Gang of Four patterns functionally, classifying each as runnable, constrained, closed/tagged, or feature-gated rather than claiming a clean mapping. demo-combinators uses Smullyan’s bird-named combinators to exercise named function values and uniform call invocation. demo-functional-pipelines takes composition cues from Ramda without reproducing its API. demo-file-processing goes from hexdump and byte statistics through WAV round trips, bounded range analysis, MP3/ID3 and Ogg inspection to an extension-backed MP3-to-Ogg capstone, with 125 native tests. demo-memory asks how a system finds the small part of memory that matters, starting at hash-table probe behaviour and heading toward caches, filters, retrieval, and sparse attention.

ML tooling. demo-ml-utils (169 commits) does bounded inspection, validation, visualization, conversion, and quantization for Safetensors, GGUF, and tensor-only checkpoints — header inspection uses range reads and file_size, so memory follows the header budget rather than artifact size. demo-ml-microscope builds on emit_frame(name, step, value), which streams a whole numeric tensor and returns it unchanged, to expose named intermediate values as a recorded timeline.

Graphics and networking through native extensions

demo-extensions adds native capability without putting each domain in the language runtime. A Rust cdylib exports one C-ABI symbol; a loader validates it and registers it under a private namespace; a shipped module.mlpl facade re-exposes it publicly. The programming model is an MLPL module rather than an FFI call API.

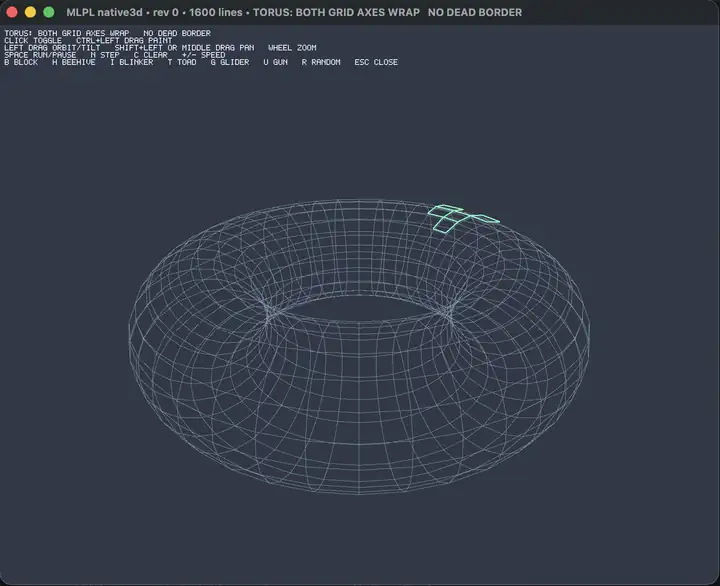

Graphics. The native3d extension provides generic line and point scenes rendered with wgpu, plus a reusable MLPL camera, picking, geometry, and application loop. The demos are MLPL-owned: a bulk-array wireframe cube, tic-tac-toe with MLPL rules and minimax, and a finite-grid Life model with presets. All interactive demos now initialize one retained scene and use stable-ID patches for geometry and style changes, with view updates for camera, help, and status. A bounded point-cloud path was added with a deterministic headless renderer alongside the wgpu one.

Networking. Three providers: a bounded HTTP/HTTPS client with shared middleware-policy validation, a callback-free local HTTP server, and a confined parameterized SQLite provider. The server’s execution model keeps the inversion explicit — Rust owns the socket and HTTP framing but never calls into MLPL. MLPL polls one owned request, calls an ordinary MLPL handler, and supplies one owned response:

server  = _web.listen(config, middleware_toml)
request = _web.next_request(server, 100)
response = u:web_dispatch_request(request, handler)
_web.respond(server, request.id, response)
_web.close(server)

On top of that sits a small MLPL web framework and a persistent TodoMVC serving browser CRUD from MLPL. The underscore names are the private provider contract; the public web facade owns their final spelling once package import lands.

What is and is not proven. sw-MLPL exposes a static scalar registry and a byte-compatible C-descriptor adapter, and both its built-in hello:answer() and the downstream _hello:answer() provider are proven through the interpreter. Dense arrays in both directions, opaque persistent handles, and structured record returns are proven across the real downstream descriptor, with extension signatures surfaced in :describe and help. use <package> import, compilation, dynamic loading, and compiled-provider startup remain tracked contracts, and the repositories treat a local mock as insufficient evidence.

Also landed

Outside the areas above: MLX now executes on the Apple GPU with a resident optimizer keeping weights and moments on-device; a Candle/cudarc CUDA backend went from spike to a working device("cuda") vertical slice including a LoRA fine-tune; an Engram implementation gained a forward pass, tape differentiation, in-chain insertion, and an engram_stats builtin; and the visualization side added a dataflow(nodes, edges) structural SVG renderer and SMIL-animated widgets.
